Progress Report

February 22nd, 2005

Overview

• This progress report focuses on technical aspects
• More visual results than before
• Discussions and analysis are most important

Recapitulation of Main Ideas

• Demonstrate a model evaluation method which works
• Reveal the behaviour of evaluation as sigma (of noise) changes
• Find out how different distance measures affect evaluation
• Devise the algorithm/s to evaluate models
• Compare Tim's models (derived automatically from registration)
• Unveil 'goodness' of particular registration (automatic landmarking) algorithms

A Peek at Important Points

• Models were evaluated without knowledge of which one is which
• Evaluation was unbiassed
• No attempts to adjust algorithm to fit anticipated results
• Conclusion I: Elimination of redundant points improves the model
• Conclusion II: Group-wise better than pair-wise

Comparison of Distance Measures

• Distance measures affect ability to differentiate models
• Many choices can be made
• In the past few days:
  • Measures were judged visually at the start
  • Measures were compared later using a real example

Distance Measures

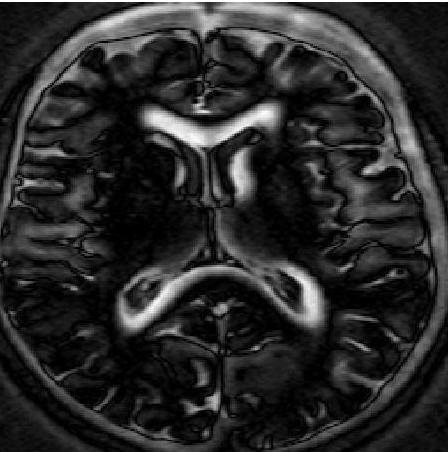

• Intensity differences

Distance Measures

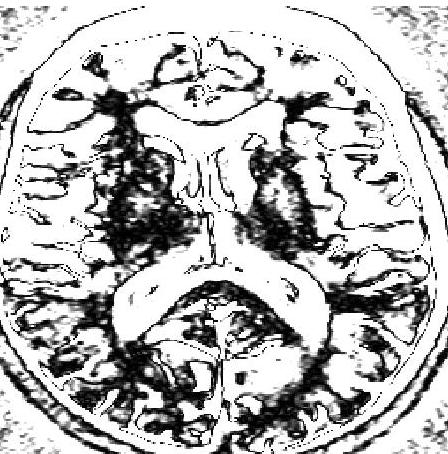

• Squared intensity differences

Distance Measures

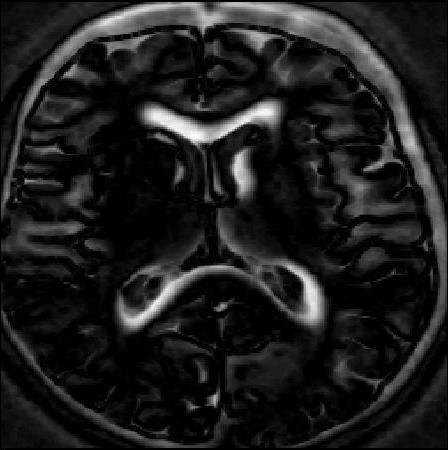

• Shuffle distance, window size 3x3 (radius 1)
• Intensity differences

Distance Measures

• Shuffle distance, window size 3x3 (radius 1)

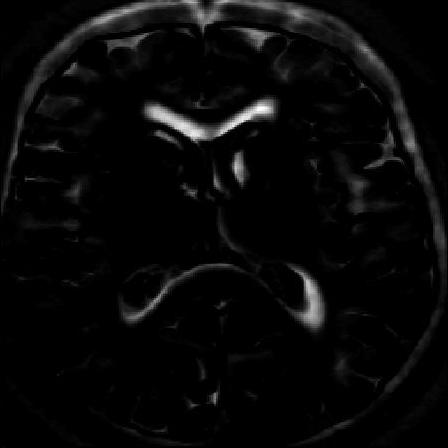

• Squared intensity differences

Distance Measures

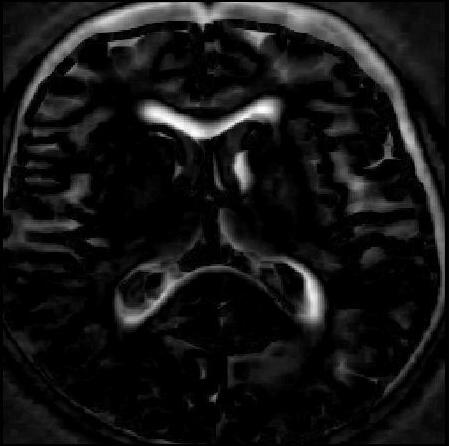

• Shuffle distance, window size 5x5 (radius 2)
• Intensity differences

Distance Measures

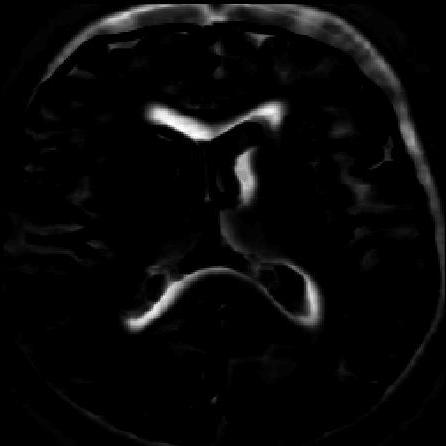

• Shuffle distance, window size 5x5 (radius 2)
• Squared intensity differences

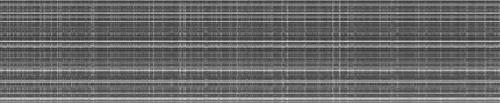

Example Distance Matrix

• 500 syntheses, 104 images in training set
• Shuffle distance, window size 7x7

Testing the Model Evaluation Method

• Get hand-annotated dataset
• Add an increasing amount of noise to annotation
• Expect specificity to increase as function of noise
• Generalisability likewise

Results

• Behaviour as expected/hoped for
• Noise increased nearly up to the point where folding is introduced
• Awkward behaviour is inflicted upon model due to excess folding

Results

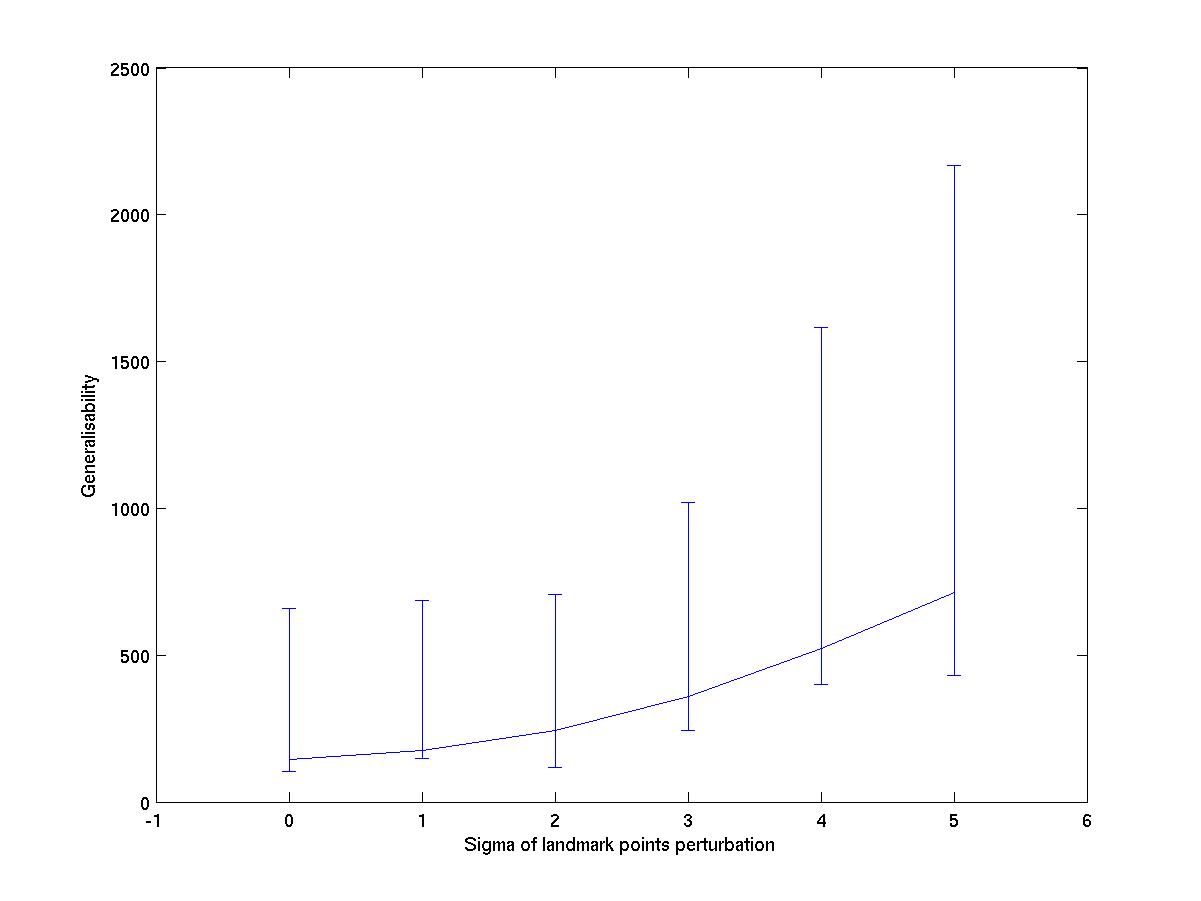

• Specificity increases as model exacerbates

Results

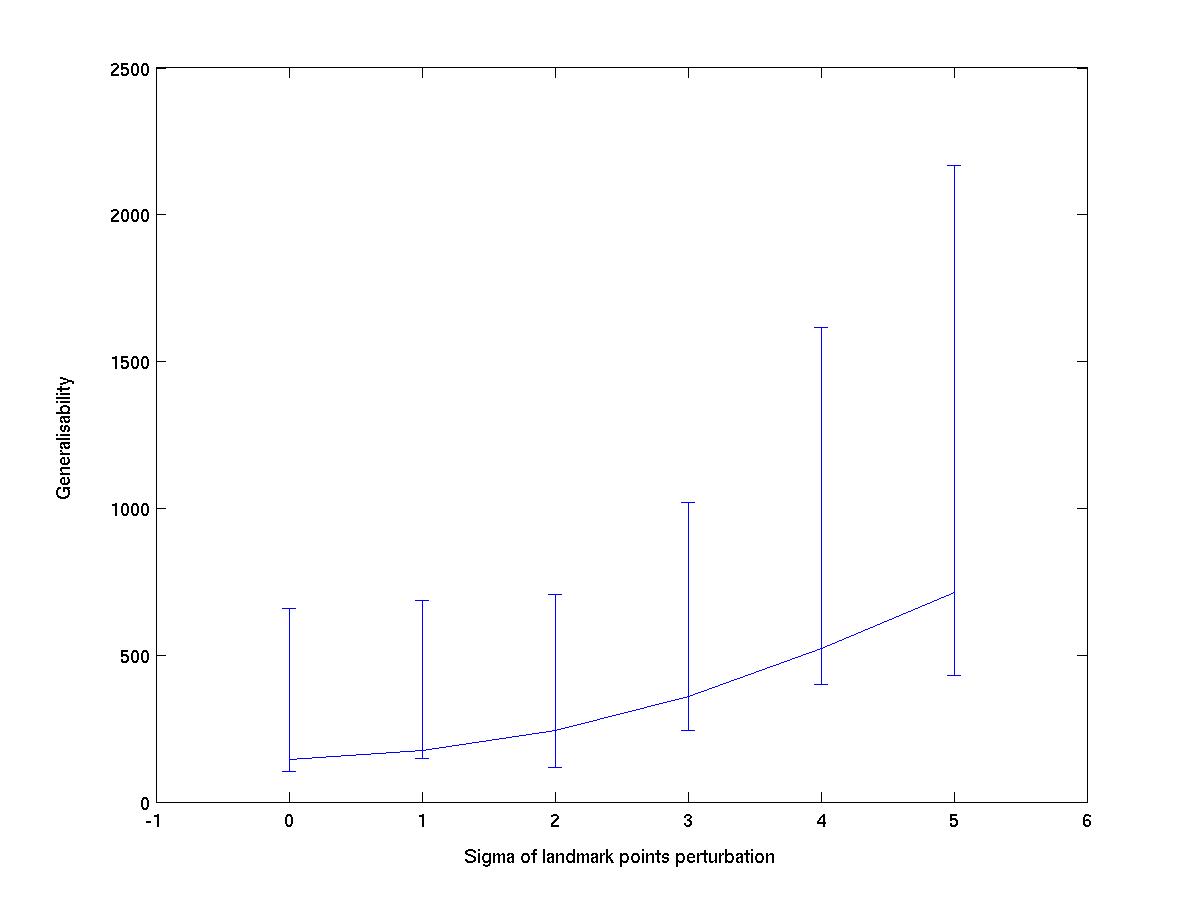

• Same with generalisability
• Relatively smooth curve

Results

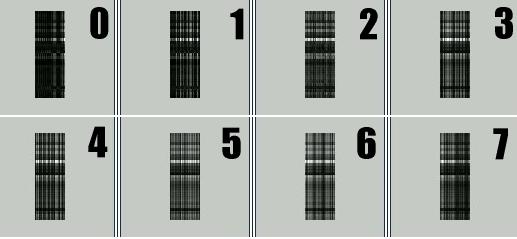

• The matrix of distances for Sigma_perturbation := 0..7
• Brighter colours indicate greater distance, i.e. difference

Practical Tests

• Data for models passed on without any description from Tim
• Many large experiments performed
• Results do not necessarily correspond to same algorithm since code was progressively improved
• Nonetheless, results remain consistent

Description of Three Experiments (Tim)

• Experiment 1: Pairwise registration with a regular grid of 16 x 16 points
• Experiment 2: Pairwise registration with a grid of 16 x 16 points, but removing those in low variance regions
• Experiment 3: Groupwise registration using grid as in Experiment 2

Practical Tests: Visual

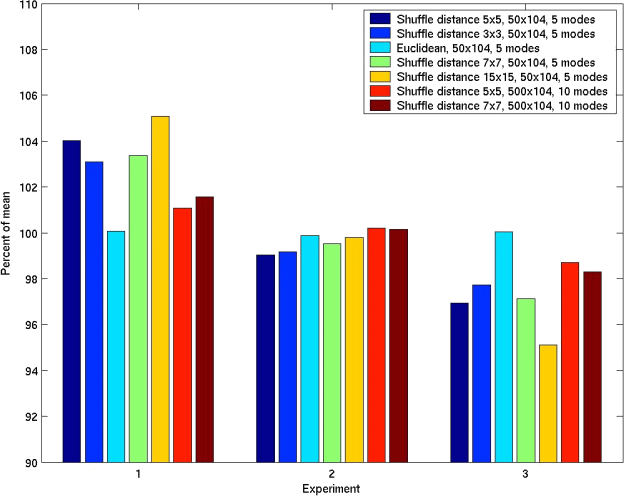

• Specificity

Practical Tests: Visual

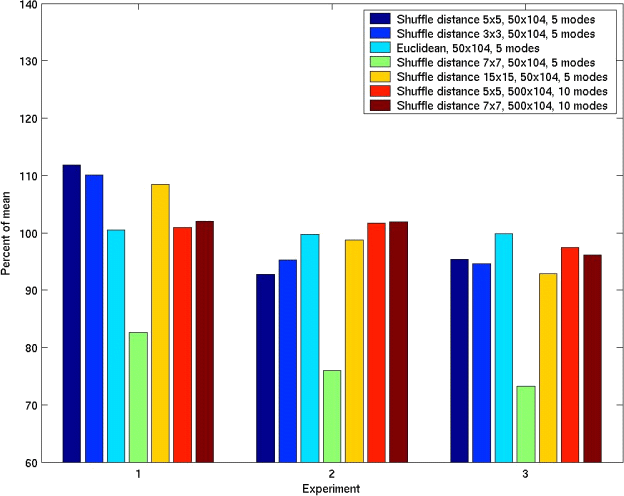

• Generalisability

Summary

• The work can be broken down into 3 stages:
  • Reasoning about the model evaluation framework
  • Showing that it works in principle
  • Using it to evaluate Tim's results

Present and Future

• Another 4 'anonymous' models are evaluated at present
• IPMI: section about evaluation to complete?
