Progress Report
June 28th, 2005
Overview
- Analysing the perturbation
- Implementation of bending energy
- Randomising knot-points placement
- Re-sampling of original, supposedly unwarped images and labels
- Preparation for experiments
- Awaiting re-registered data and validation to verify its quality
The Perturbation Framework: Progress
- Analysis of the perturbation has been augmented
- Reliability of the framework has improved
- Scripts are now in a working state, only awaiting data
- More on the issue of perturbation later on in this report
Random Warps
- The CPS-based warps used to be based on a rectagular grid
- A newly-added option caters for randomising of the warps
- Deciding whether the result is desirable
- The randomisation is not very simple to justify
- Values of the distribution are not very well scattered
- Perhaps this attribute of the distribution is a good one
Random Warps: Example
![](random_knot_points.jpg)
A random placement of knot-points in perturbation
Warping a Brain Image
![](./Bending/warped_image.jpg)
The image being warped in some visual examples that follow
Computing Warp Intensity
![](./Bending/warp_intensity.jpg)

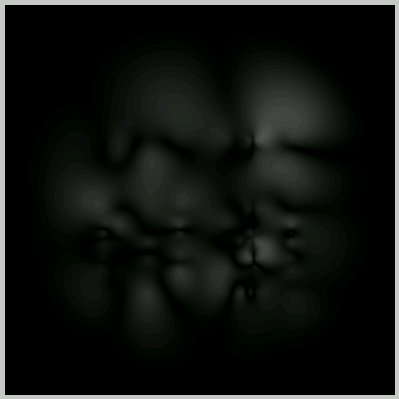

The intensity (magnitude of displacement) of the warp in 2-D
Computing Warp Direction
- Colour coding chosen to represent directions of displacements
- The figures show that movement is not very complicated to track
- Movement always tends to be from the centre of the warp outwards, as expected
- Serious clean-up of code was involved in this implementation
- Aided the implementation of bending energy (soon to follow)
Computing Warp Direction - Example
![](./Bending/warp_directions.jpg)

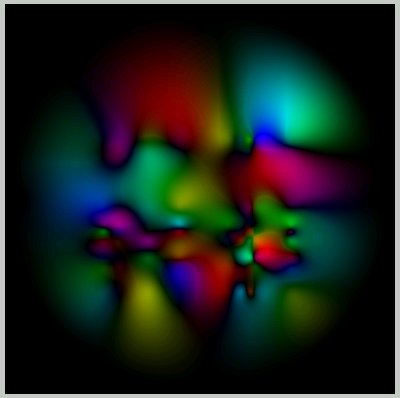

81 knot-points, movement direction for the pixels being shifted
Analysing Warps Direction
![](colour_displacements_image_only.jpg)
For this given image and mean pixel displacements, the direction of the displacement at each point will now be shown
Analysing Warps Direction
![](colour_displacements_map_only.jpg)
An improved weighting on the colours to make the directions more prominent
![](colour_displacements.jpg)

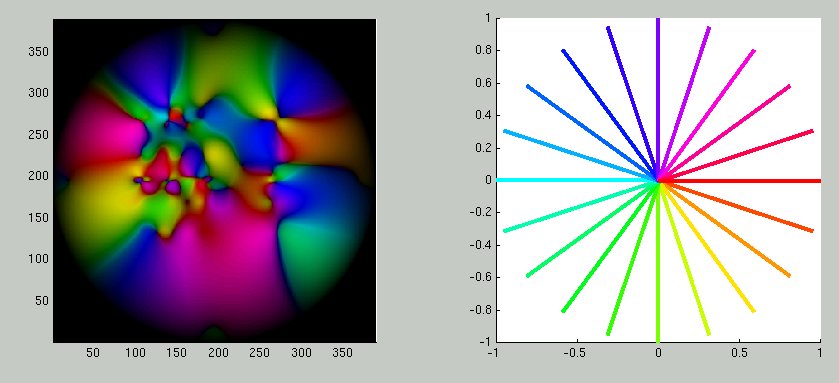

A figure to show the mapping between directions and colours
Analysing Warps Direction
![](carole_adjustment.jpg)
Explanation - Analysing Warps Direction

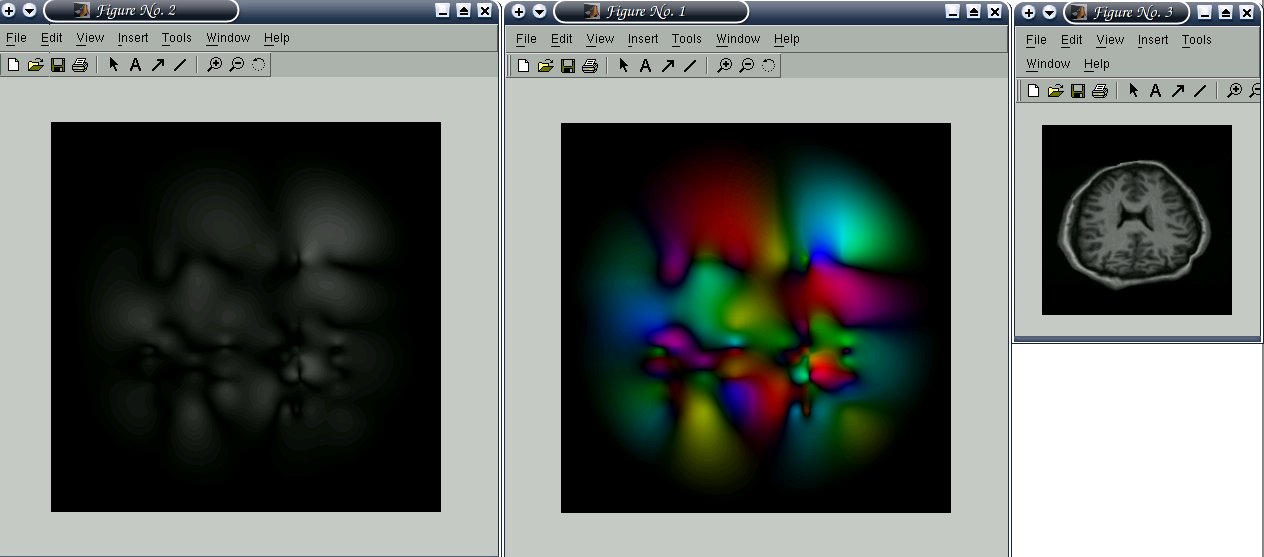

Yet another combined visualisation:
displacements direction as colours (middle)
next to the intensity (displacement magnitude) matrix on the left
and the warped image on the right
Computing Warp Intensity along One Dimension
![](./Bending/x_warp_intensity.jpg)
The intensity of warps along the X axis
Computing Warp Intensity along One Dimension
![](./Bending/y_warp_intensity.jpg)
The intensity of warps along the Y axis
Computing the Second Derivative
![](./Bending/x_warp_intensity_2nd_derivative.jpg)

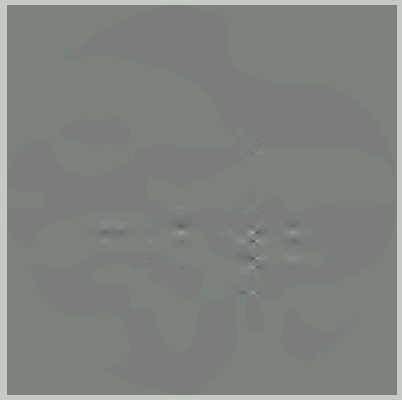

2nd derivative of the intensity of the warps along the X axis
Computing the Second Derivative
![](./Bending/y_warp_intensity_2nd_derivative.jpg)

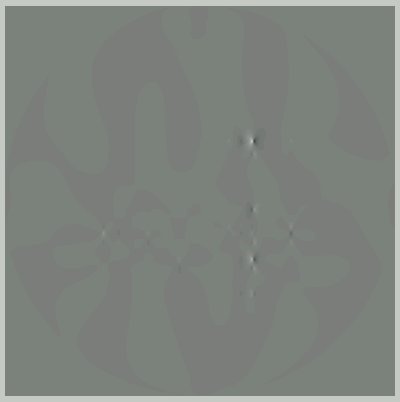

2nd derivative of the intensity of the warps along the Y axis
Analysing Warps - Bending Energy
![](warp_analysis.jpg)

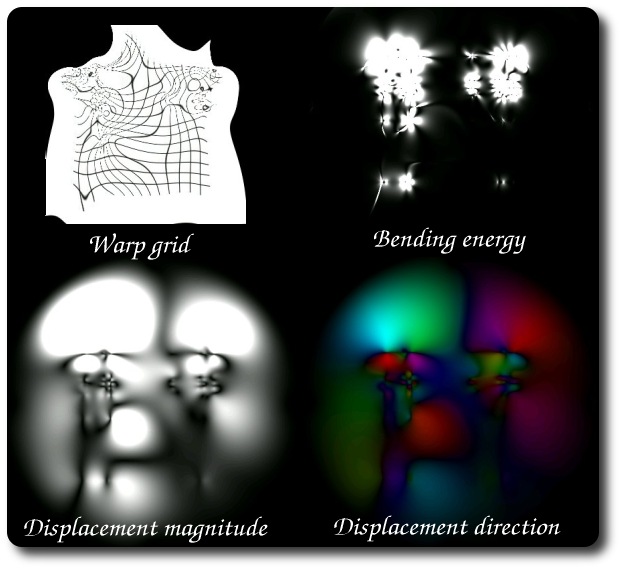

A more comprehensive overview where ending energy 'picks up' the nasty bends at the top-right and top-left corners
The Resampling Issue
![](brain_after_warp.png)
Brain before (left) and after (right) a small warp where resampling has a relatively significant effect
Experiments - Revising the Plan
- Resampling of the images at the start to perhaps prevent the small 'dip'
- Also, a better initial registration might prevent the dip
- Experimental scripts set to warp at levels: ~1 (no warp, but resampled), 25, 50, 100, 200, 400, 800
- Around 5 pixels of average displacement at most
- The increase is linear (magnitude n results in roughly twice the displacement of n/2)
Experiments - Ctd.
- Evaluation with shuffle of radius: 0 (absolute difference), 1.5, 2.9, 3.7
- Approximately 7x7 window at most, but shape of mask differs
- 5-10 instantiations to smoothen the curve
- 37 images and labels which gave reasonable results in the past
- Subsets may result in less consistent results, so perhaps some risk is involved
- Moreover, use of entire set to get reasonable results implies robustness
VXL compilation
- Needed for a large number of experiments
- Problems with space or integrity of minimal builds
- Compilation efforts conceded yet again, for the third time
Initial Registration
- IBIM set of 37 brains (with labels) registered down to the finer levels
- Registration needs to be done by Vlad or Tim
- Everything set up including analysis of displacements direction and bending energy
- Need to apply it all to the data and carry out a comprehensive evaluation
- Possibly choosing subset due to some lower-quality images
Miscellany
- contacted authors of the Euclidean distance paper
- Liwei (first author) has not considered shuffle tramsform yet
- The paper might be of interest when wishing to compare more powerful or faster image distance measures
Overlap Measures in Registration
- Test registered set of images and labels first
- Check overlap to confirm registration (in terms of overlap) has improved
- KCL might pursue a submission without our involvement at first
- We can implement our own MI-based algorithms to evaluate ground truth using labels
- Open Source projects might provide the tools for this very generic problem
Overlap Measures in Registration - Ctd.
- Enquiry/advice on the use of labels for registration that is perfect in terms of overlap
- have they considered using the labels to drive registration yet?
- is there a way by which we can start with a good overlap?
- if so, can we also have fairly decent similarity among the images?
28/6/2005 Afternoon Update
- Bill to implement the label measures to drive the registration
- No implementation yet
- Will take a bit of thought to implement properly
- Overlap measures-based registration accepted for MICCAI
- Not know whether as an oral or a poster
Summary
- Perturbation framework is ready
- Several improvements made, e.g. re-sampling at the start
- Scripts will make this job far less effort-consuming
- Tools to analyse the registration degradation
- Warp directions
- Bending energy
Present and Future
- Complete Experiments
- Compare with ground truth results
- Use feedback from previews reviews to target weaknesses, method validation in particular
- ISBI/ECCV/Journal paper incorporating the essence of our method
